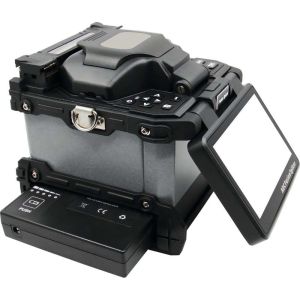

FONGKO FKEQU-427 GS-601 Machine Automatic Splice Machine Core Alignment Fiber Optic Fusion Splicer

Brand Name : Fongko

Model Number : FKEQU-427 GS-601

Certification : Rohs, SGS, ISO

Place of Origin : Shenzhen,Guangdong,China

MOQ : 1

Price : Negotiatable

Payment Terms : T/T, Western Union, L/C

Product Name : Fiber Optic Fusion Splicing Machine

Certificate : RoHS

Application : Optical Fiber cable splicing

Operating temperature : -25~+50℃

Typical splicing duration : 6 seconds

heating : 15S

Motors : 6

Contact Now

FONGKO FKEQU-427 GS-601 Machine Automatic Splice Machine Core Alignment Fiber Optic Fusion Splicer
GS-601 implements industrial-grade CPU+FPGA structure of high-performance, completely fresh HD optical fiber microscope, imported high-speed motor and aluminum-magnesium alloy materials extensively. Compared with the old version, our start product, GS-601 lowers the size by 38%, the weight by 52%, the power consumption by 57%, but improves the speed by 60%, the environment adaptability by 80% and the reliability (MTBF) by 200%. You can get unprecedented fusion splicing experience.

Alignment method
6 motors core to core alignment
Applicable fiber
SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), BIF(G.657)
Cladding diameter
80-150μm
Coating diameter
160-3000μm
Cleaved length
5-16mm ( coating diameter<250um)
16mm (coating diameter:250-1000um)
Typical splice loss
SM: 0.02dB；MM: 0.01dB；DS/NZDS/BIF: 0.04dB
Return loss
>60dB
Splicing program
40 groups
Operation mode
Manual/ Automatic
Auto-heating
Available
Typical splice time
6 seconds
Typical heating time
18 seconds for 60mm and 40mm shrinkable sleeves
Fiber magnification
250X(X or Y view), 125X(X and Y view)
Viewing display
Dual high sensitivity camera, 5 inch 800*480 LCD Touch Screen Monitor
Data storage
4000 groups data records
Loss evaluation
Available
Tension test
1.8~2.25N
Interface
GUI menu interface, easy for operation
Battery capacity
5200mAh Li-battery, 250 cycles splicing and heating
Power supply
Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
Electrode life
More than 4000 ARC discharges, easy to replace
Data storage
Pluggable 8GB micro SD card
Terminals
USB 2.0 port, for software upgrading, records exporting
Operating
Altitude:0-5000m, Humidity:0-95%,Temperature:-10~+50℃; Wind:max 15m/s
Dimension/Weight
156mm(L)×141mm(W)×156mm(H) / 2.45kg (including battery)

.

FONGKO FKEQU-427 GS-601 Machine Automatic Splice Machine Core Alignment Fiber Optic Fusion SplicerFONGKO FKEQU-427 GS-601 Machine Automatic Splice Machine Core Alignment Fiber Optic Fusion Splicer
